T870 Yacht Design by Tboats is a no compromise racer yet features a comfortable and roomy interior – powerful upwind, awesome downwind!
Construction drawings
This boat is a no compromise racer yet features a comfortable and roomy interior – powerful upwind, awesome downwind!
With the masthead or fractional spinnaker this is a no compromise racer – it can take you at a pace you’ve never been before. The large carbon fibre rig dismantles into 2 pieces for ease of trailering.
The T870 has excelled in Europe, Australia and the USA where it has won many races in its first year. Its light weather performance is second to none.

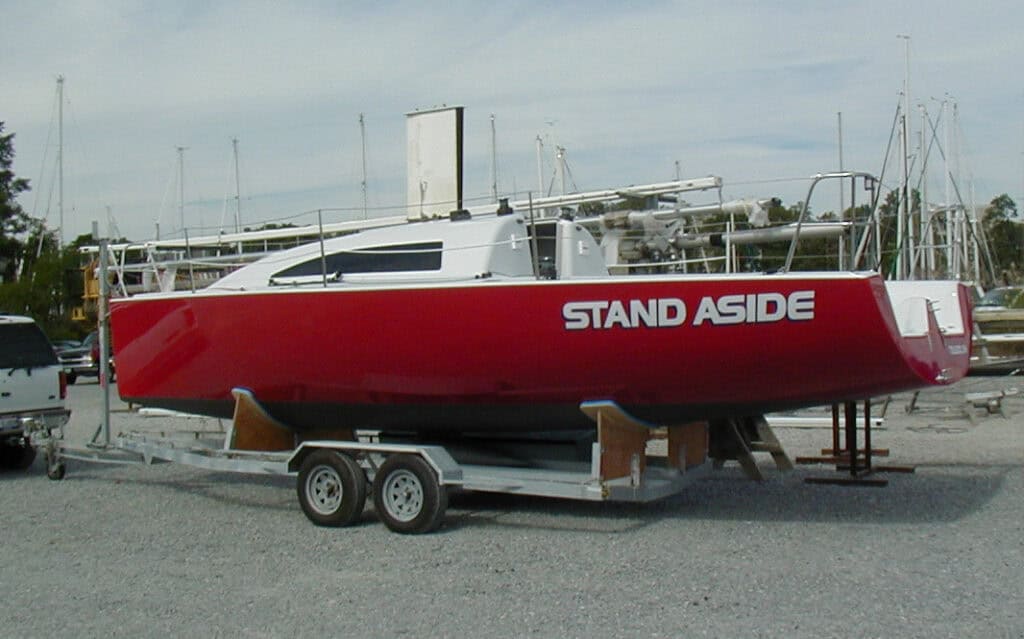

The rotating prod assists in sailing low downwind angles with asymmetric spinnaker. The light weight of the yacht means towing is easy with a large car.
Launching can be from ramp or crane using the keel mounted lift point.

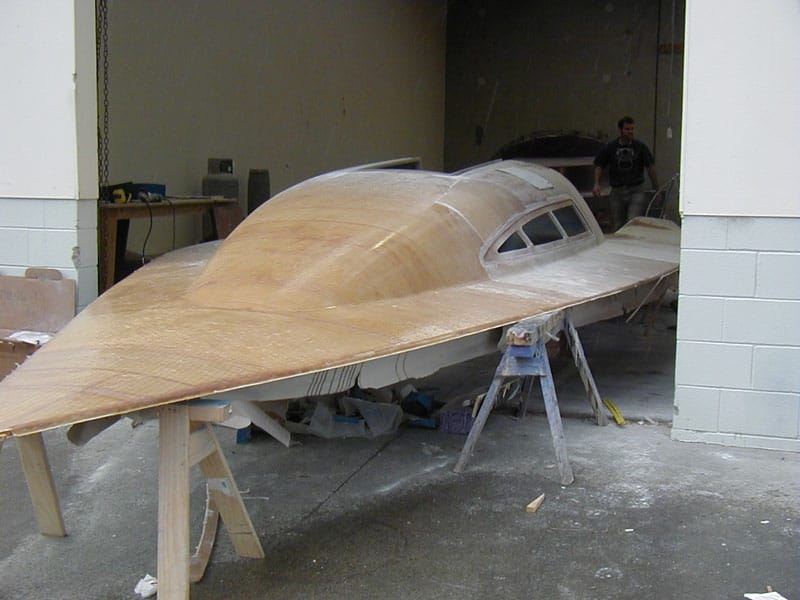

Drawings are also available for the home builder, some components can be supplied by us to help the build process.
Design
The T870 is designed as a one design with the added advantage of being a superb PHRF racer often beating much larger boats around the course.
The designers have utilises the latest VPP software to help create a boat that is very fast and stable upwind yet exhilarating downwind.

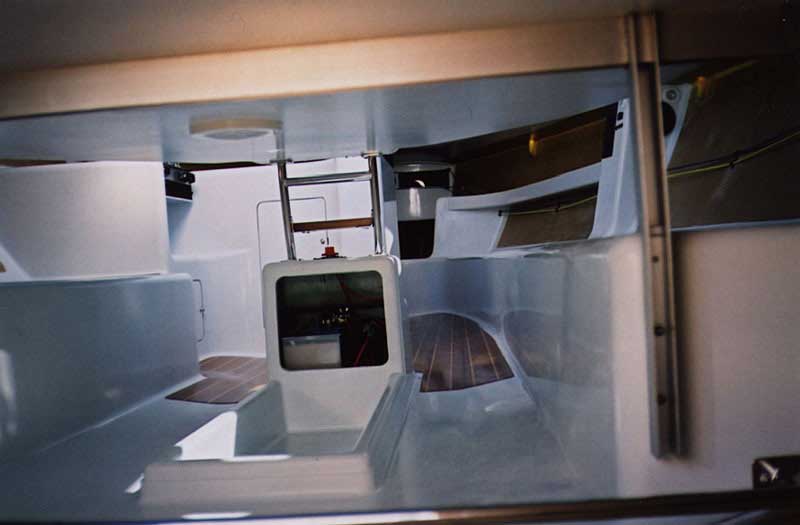

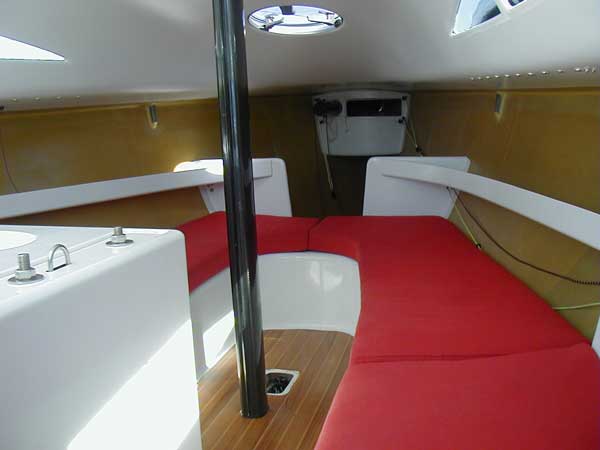

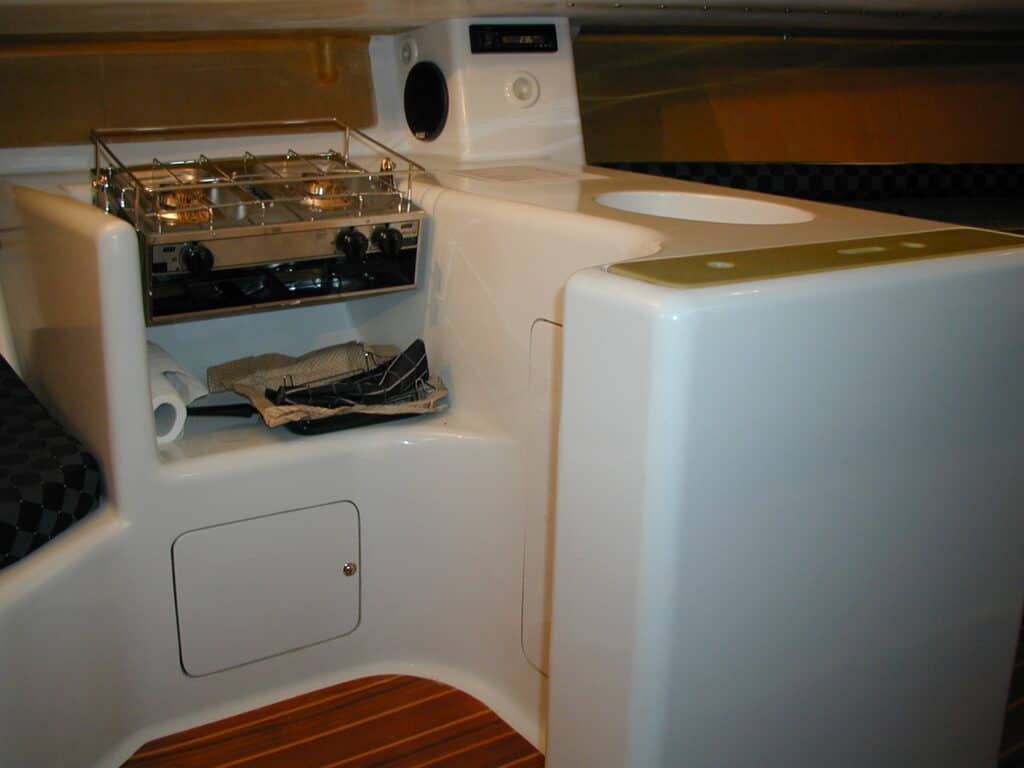

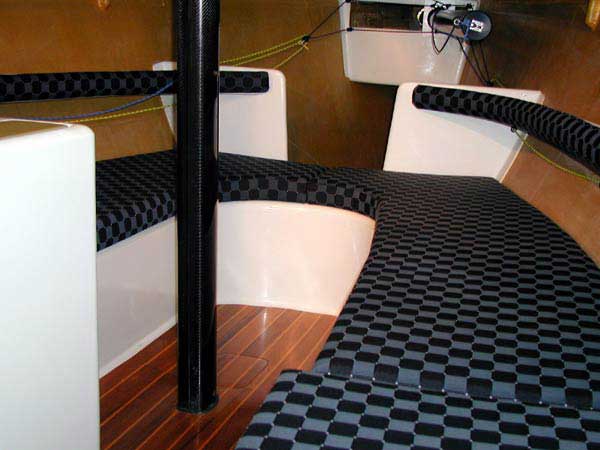

It features a very roomy boat both inside and out without sacrificing and of the performance characteristics.
The rig is simply setup with the ability to adjust the mast bend as required with the permanent backstay. The mast is designed with the mainsail roach to bend in the puffs and allow the mainsail to exhaust.
Construction

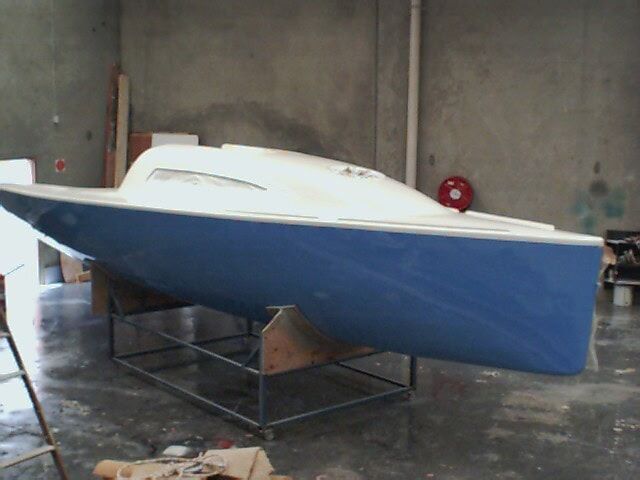

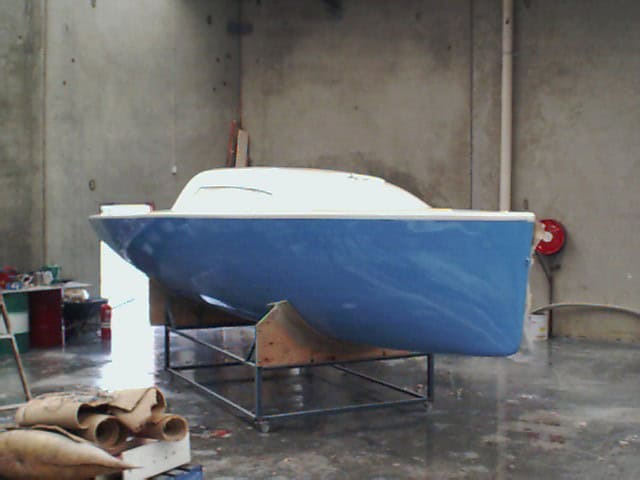

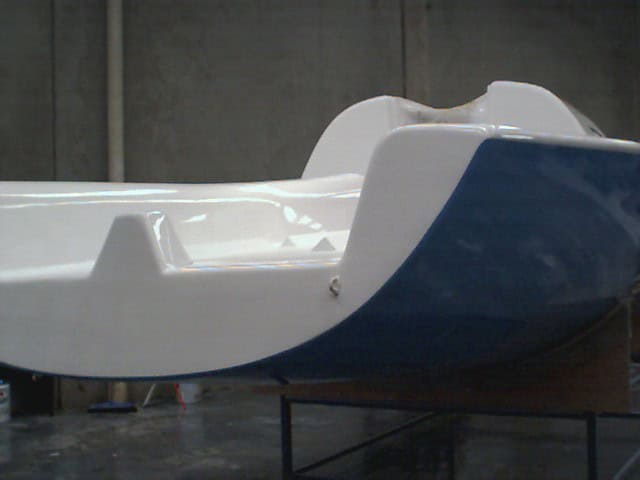

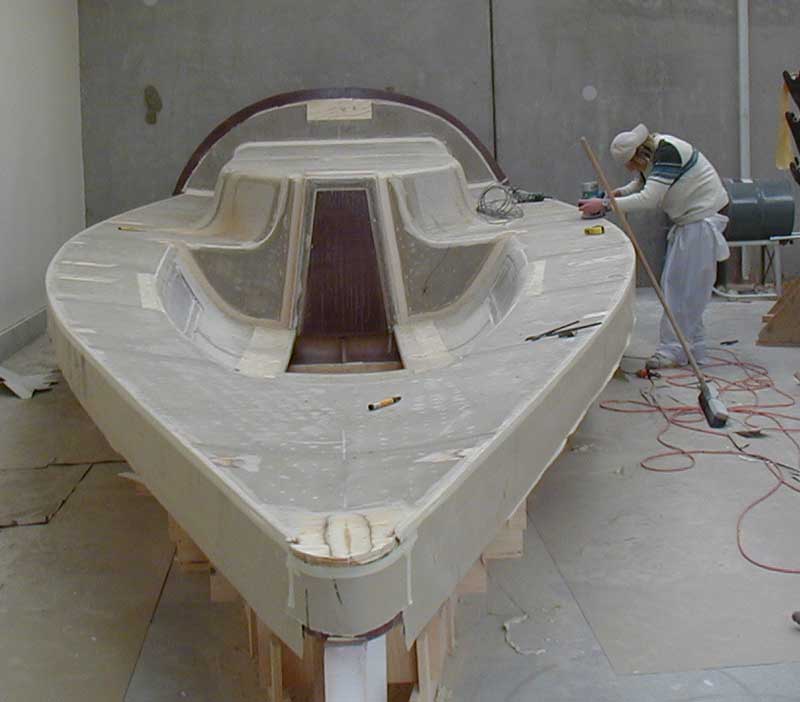

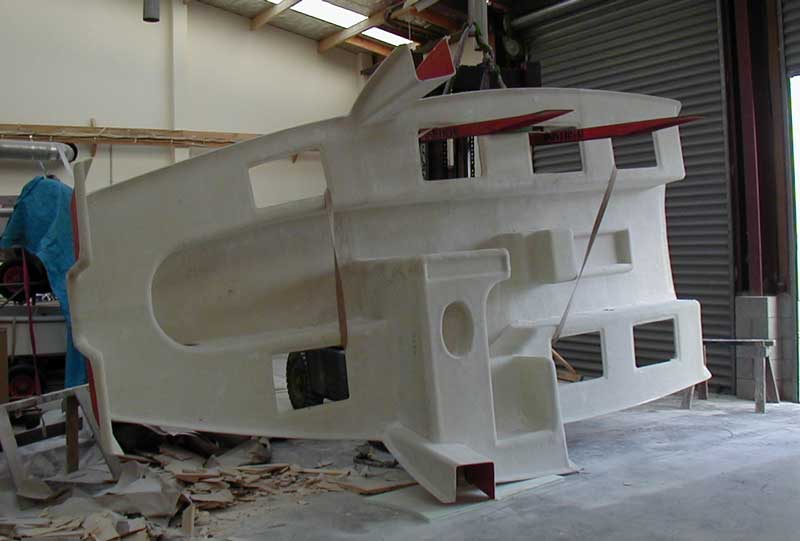

The T870 is construction using our unique temporary female moulding system, Resins are epoxy with a foam core and eglass laminates.
The keel and rudder are constructed using eglass laminates and carbon fiber stiffening.
Specification
Rig – The mast is carbon fiber with an aluminium option for the budget conscious. Rigging is Dyform with aluminium spreaders and boom.
The bow pod is articulating and carbon fiber.

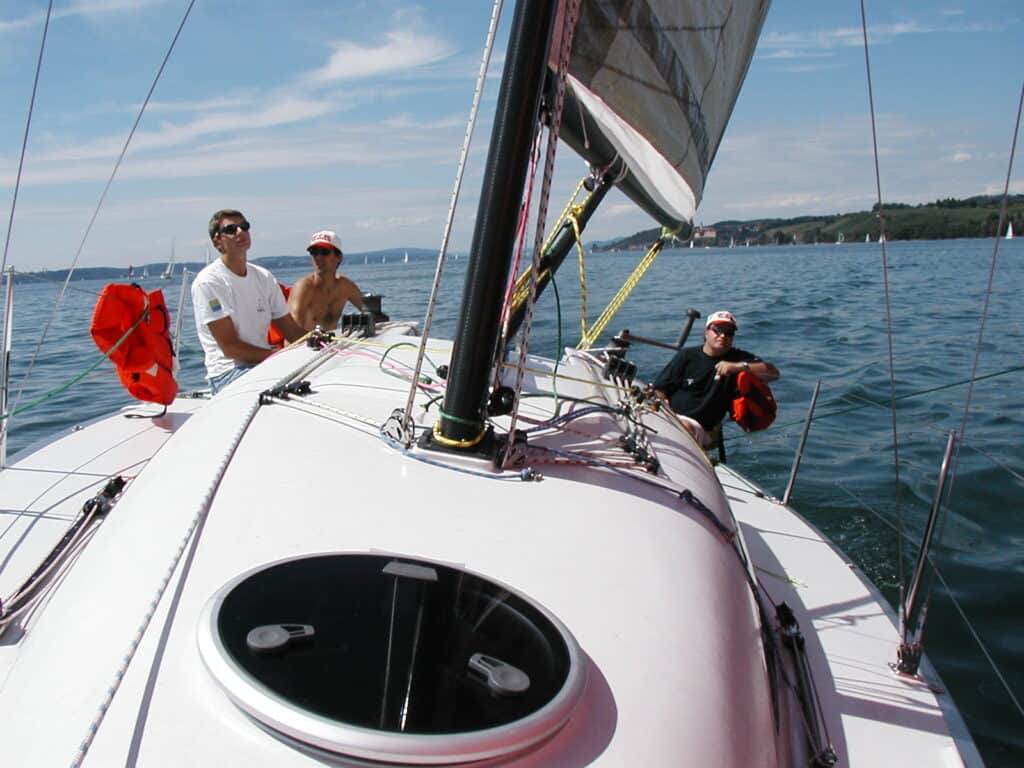

Deck Fitout – Full Harken fitout with winch options.

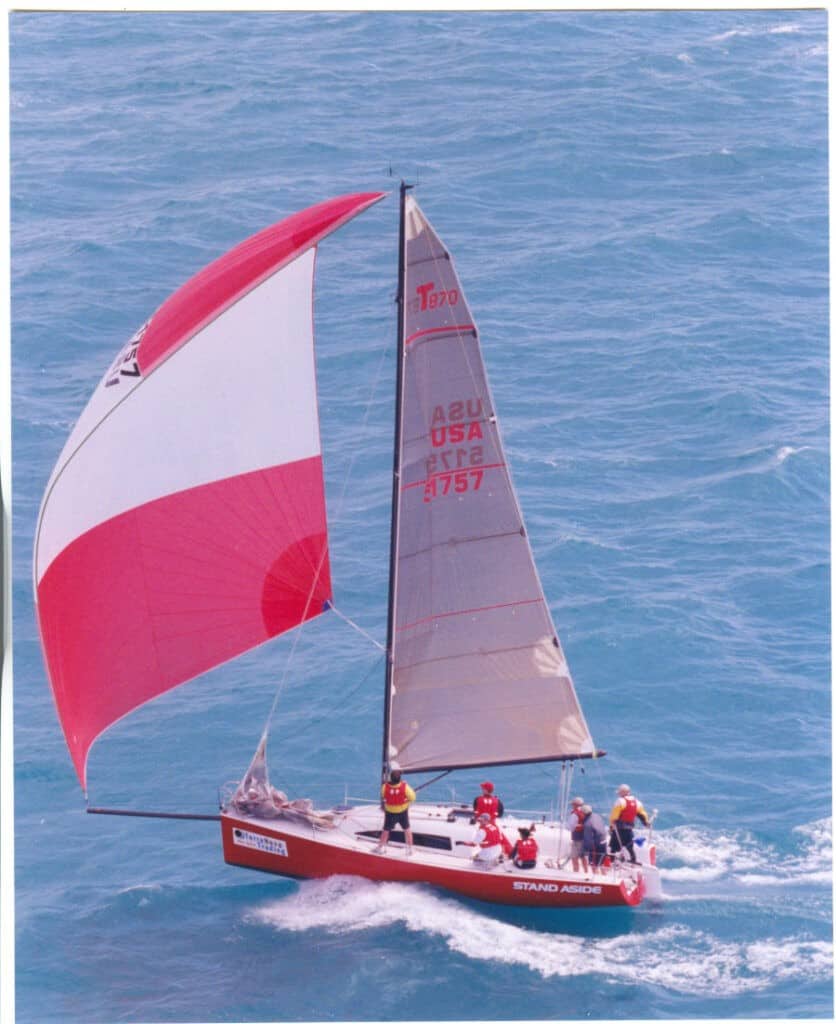

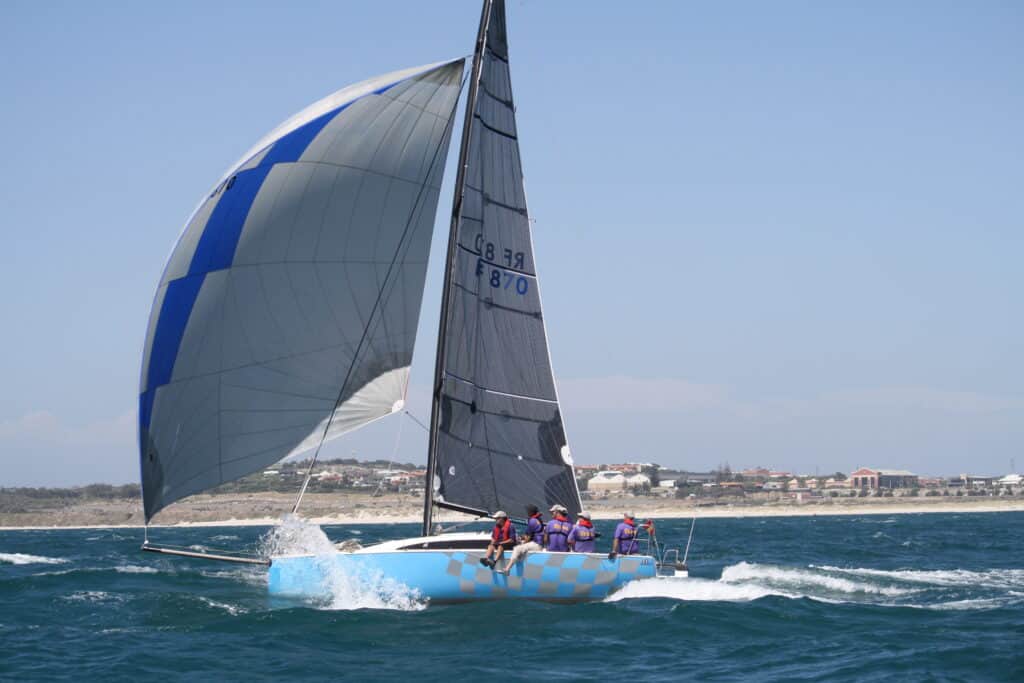

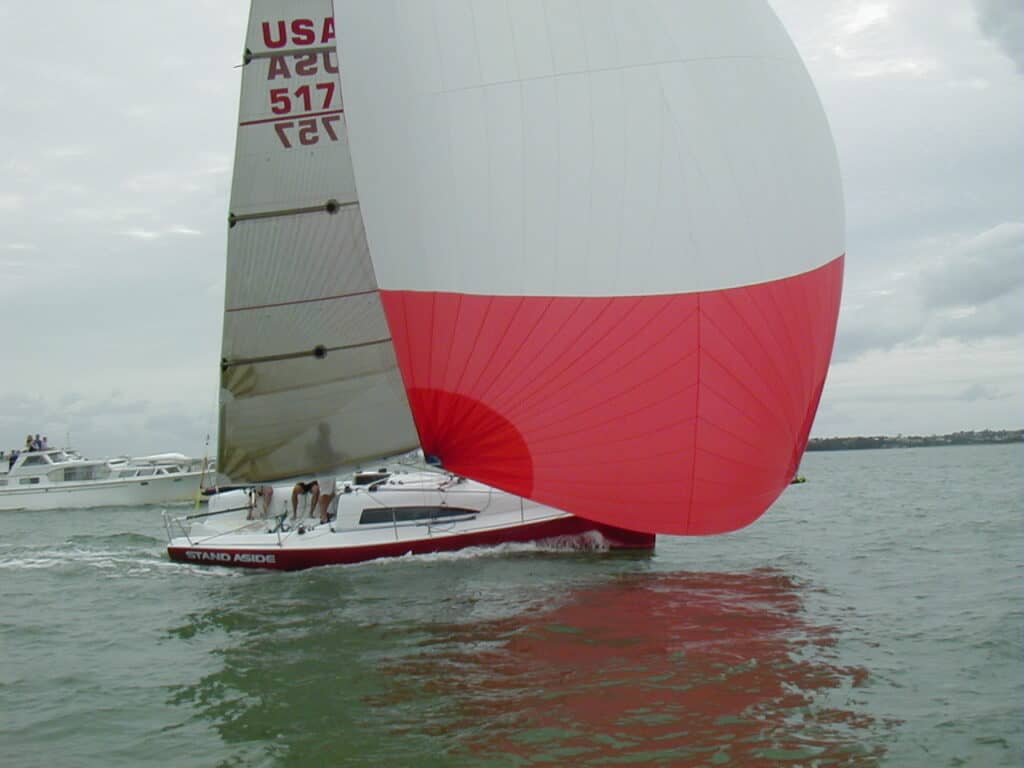

Sails – Mainsail, light and medium jib with a heavy air option. Spinnakers are asymmetric with two masthead and one fractional.
Trailer and launching – The boat can be trailer launched using the custom keel winch or dry sailed with the central lifting hook.
A design pre-order allows you to secure your spot for a design while I work on updating the foils and hull patterns to the latest, most advanced shapes. This process ensures the final design meets the highest standards, but please note that there will be a waiting time as these updates are completed.
Conditions below:
1. On receipt of the 50% deposit Tboats will provide a link to a downloadable folder that contains files for the design selected, (includes pre-order 15% discount)
a. Design drawings in pdf format
b. Build process for this design
2. Tboats will provide the construction files as soon as they are finished, (usually within 10 days)
a. CNC 2D cut files for the build frames and foils
b. Build material list and parts list
c. Performance data
3. A link for the final payment, including the 15% discount, will be emailed when the final design files are completed. Once paid a link to a download folder will be provided.
Notes!
• With each design I allow 3 hrs of my time for customisation
• Advice via email is free throughout the build and commission process
• 3D CNC cut files are available for the foils at an additional cost
