This is a very cool design for around the buoy’s and family fun.
Featuring a nice easy deck layout with basic accommodation for the small family inside
T770 Yacht Design by Tboats
- Download brochure
- Build Method and plans : NZ $3950.00
- T770 Pre-order plans 15% discounted with NZ$1679.00 deposit
- Pre-order terms & conditions
Dimensions :
LOA
7.7 m
Beam
2.5 m
Draft
2.2 m
Sailing weight
1280 kg
Crew Weight
400 kg
Complete boat
800kg
Sail area up
48.5 sqm
Sail area down
139.0 sqm
Date : Crew Weight
Description :
Sailing :
The T770 has been designed to fill the needs of a family orientated support boat providing a roomy boat with sparkling performance in the Tboat tradition.
The boat has been kept to 2.5 meter beam to enable easy towing behind the family car and to fit onto a shipping container for world wide sales.

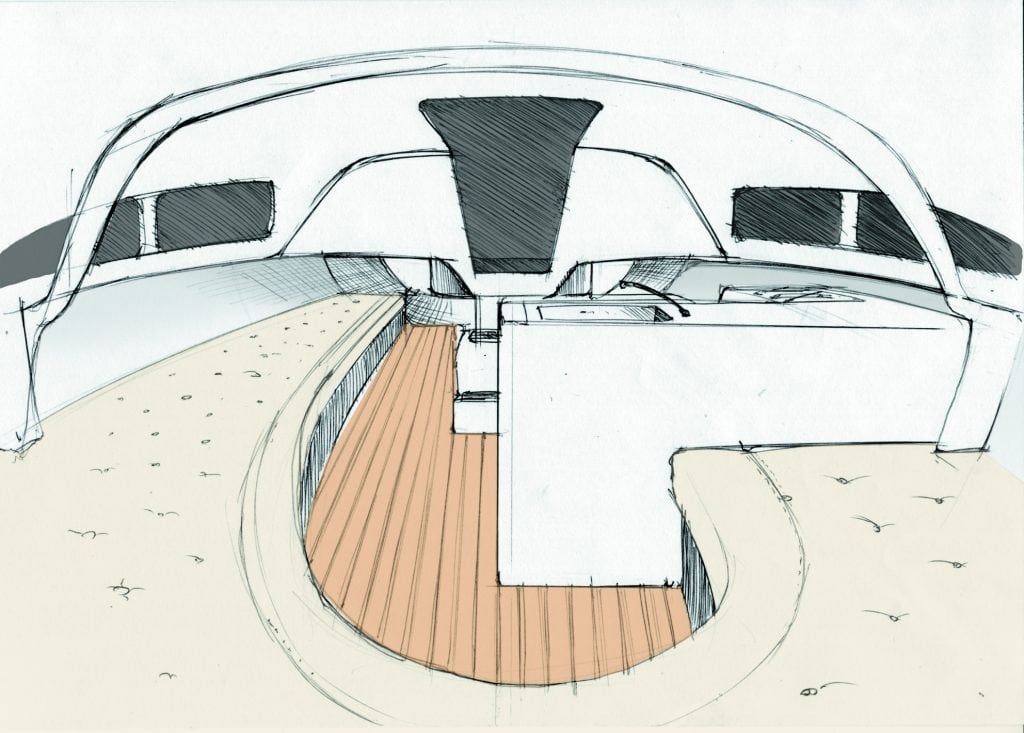

The interior is one piece with full berths and a double in the saloon.
Provision has been made for a head forward that can be closed off with the ring frame curtain.
The mast is deck stepped with a ring frame support reducing the need for a mast post internally for better interior volume.
Launching is easy with the center point lifting or lifting keel for ramps.
The boat features a simply stayed carbon fiber rig with articulating carbon bow prod.
The boat will excel in all wind conditions and will thrill with the easily handled asymmetric spinnakers. Strict class rules have been formed to encourage inexpensive and competitive sailing.
Purchase and Build Options :
Construction
Composite construction with foam core.
Carbon fiber laminated keel and rudder
Three piece monococ construction, hull, deck and internal liner Internal mast support needs no mast post
Lifting keel and rudder for trailering with maximum 2.5 meter beam

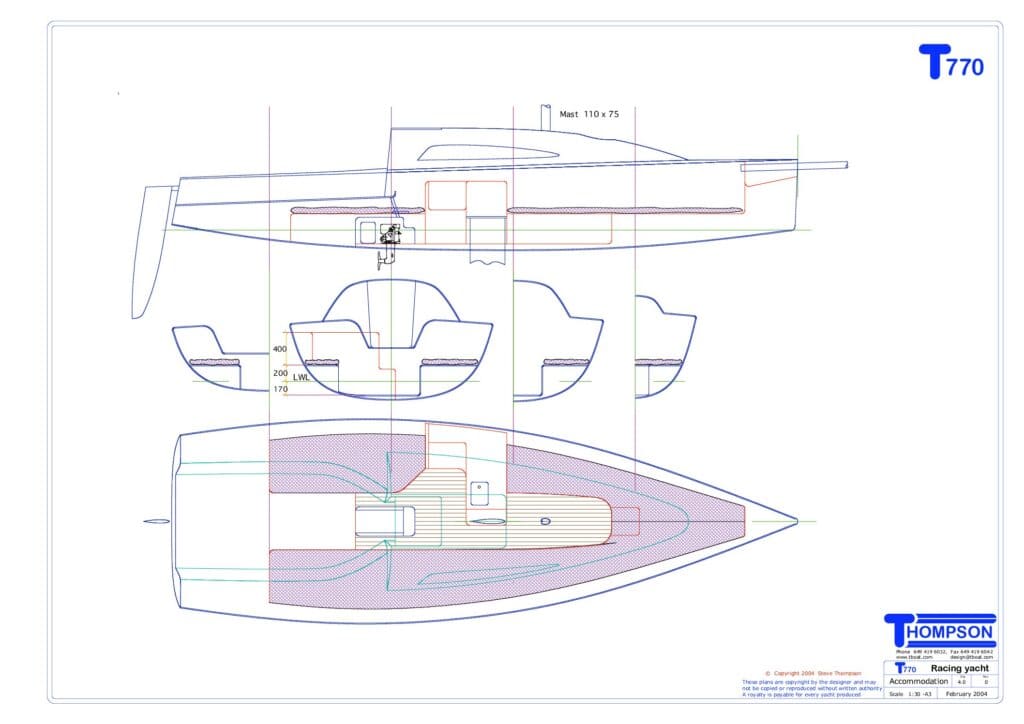

Accommodation
Sleeping berths for 5 adults

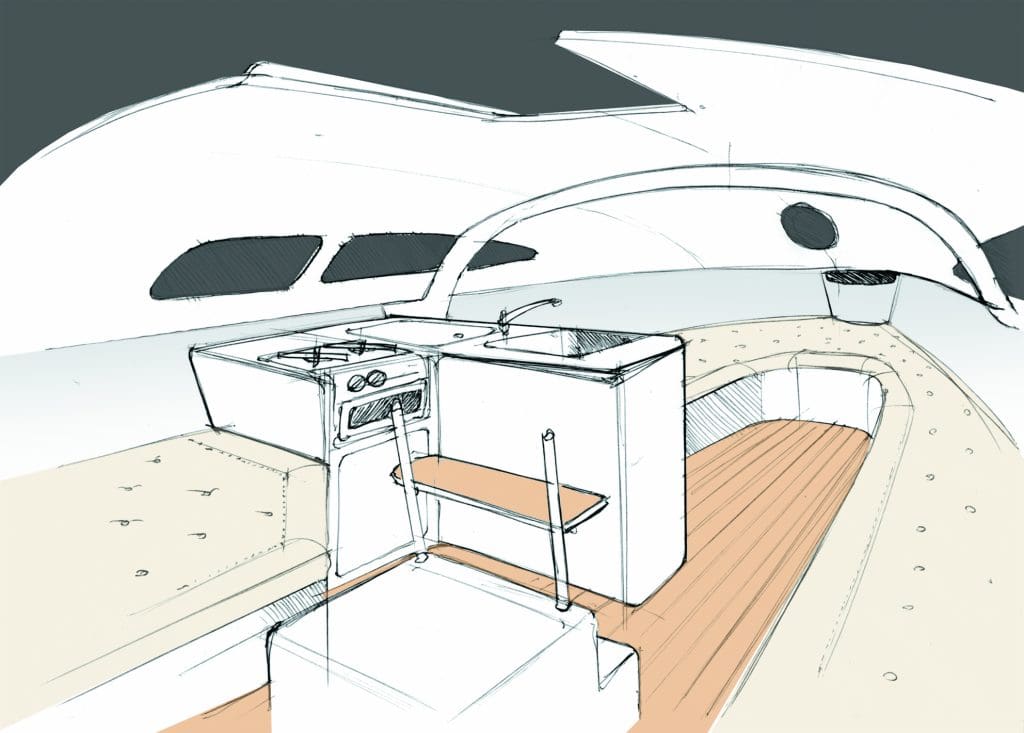

Full galley with two burner stove Saloon table forms into full double berth
Sailing

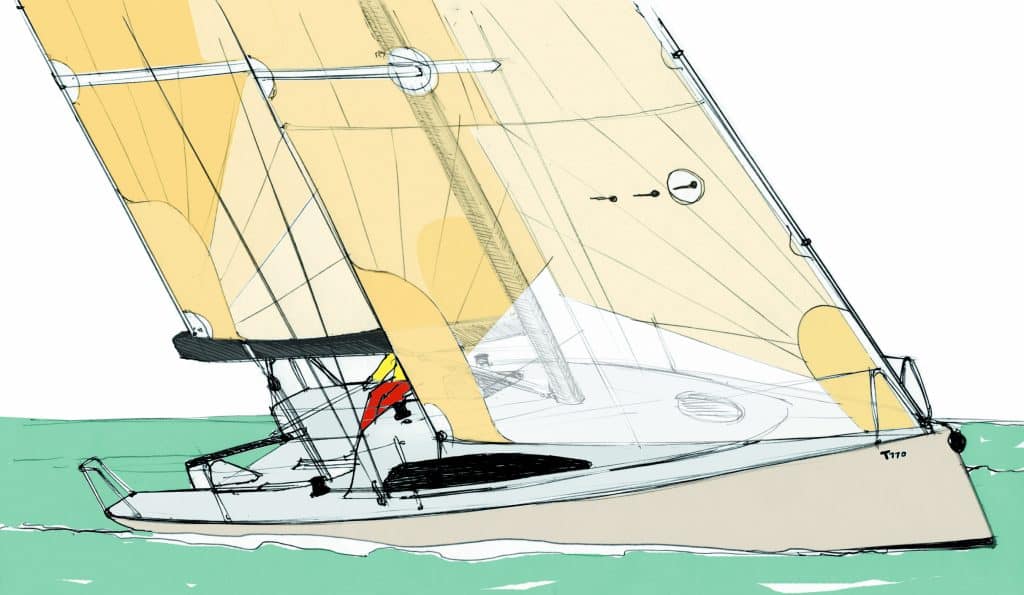

Carbon mast with two spreader rig Articulating bow pole

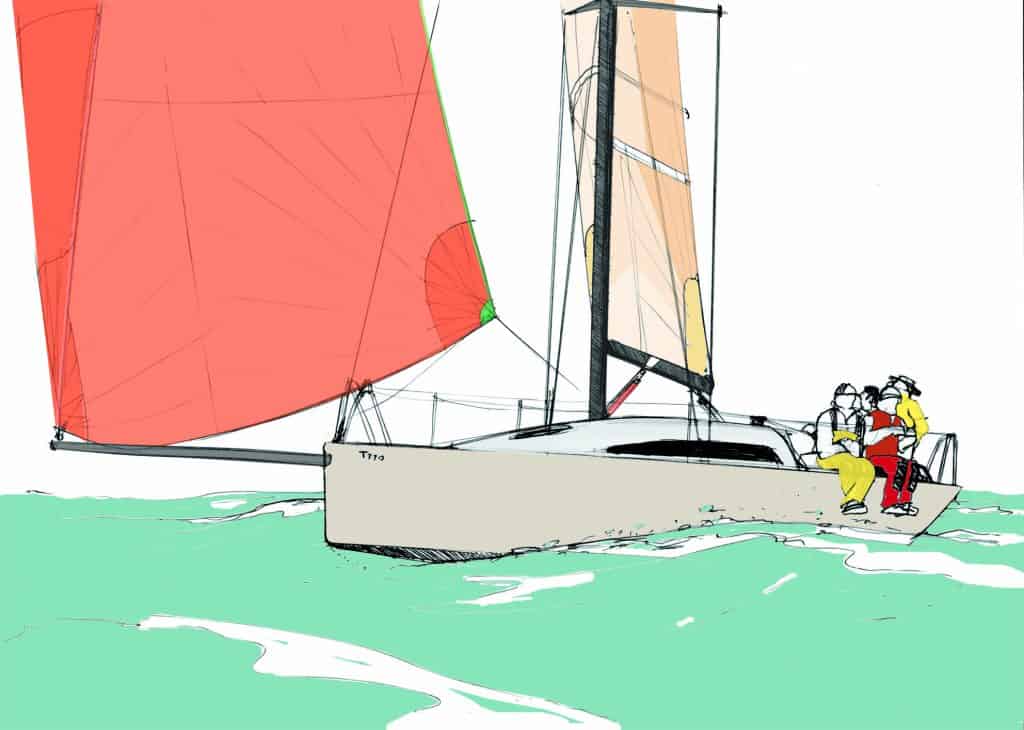

Overlapping jibs with asymmetric spinnakers 10hp sail drive that is lightweight and low drag Socketed stanchions for easy removal
Deck gear is setup for effortless two handed sailing Backstay is only required when racing using spinnakers Transon hung rudderl
Trailering
Keel is lifting with electric winch option

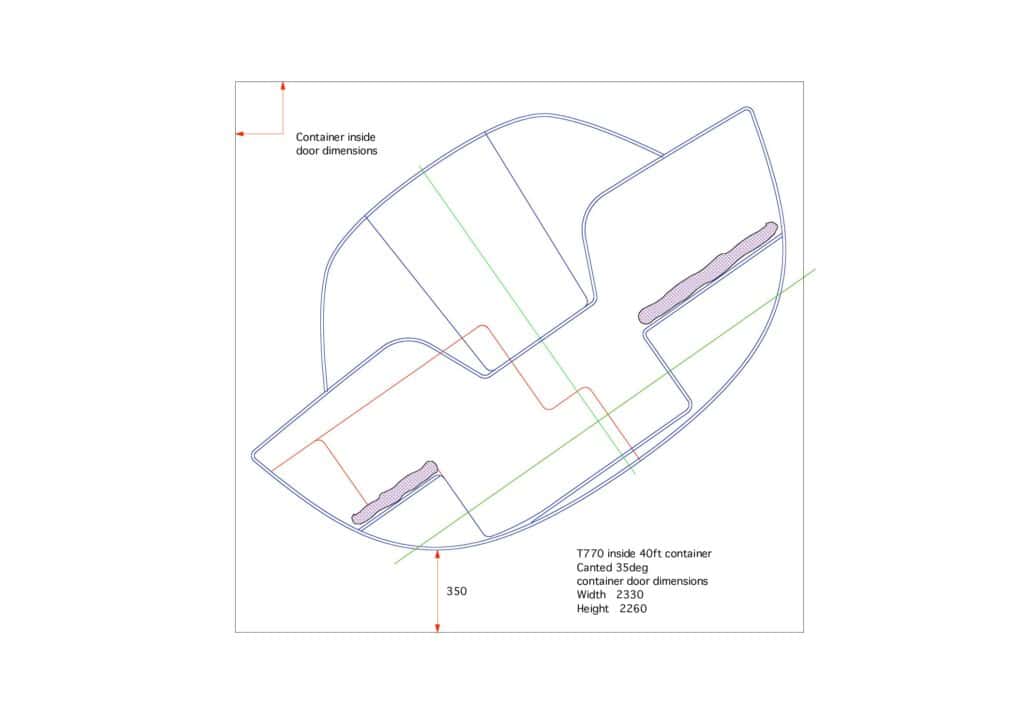

Center point lifting at top of keel for dry sailing Fits onto 40ft flat rack container for easy shipping
Links to media and Video :
Pre-order Terms and Conditions
A design pre-order allows you to secure your spot for a design while I work on updating the foils and hull patterns to the latest, most advanced shapes. This process ensures the final design meets the highest standards, but please note that there will be a waiting time as these updates are completed.
Conditions below:
1. On receipt of the 50% deposit Tboats will provide a link to a downloadable folder that contains files for the design selected, (includes pre-order 15% discount)
a. Design drawings in pdf format
b. Build process for this design
2. Tboats will provide the construction files as soon as they are finished, (usually within 10 days)
a. CNC 2D cut files for the build frames and foils
b. Build material list and parts list
c. Performance data
3. A link for the final payment, including the 15% discount, will be emailed when the final design files are completed. Once paid a link to a download folder will be provided.
Notes!
• With each design I allow 3 hrs of my time for customisation
• Advice via email is free throughout the build and commission process
• 3D CNC cut files are available for the foils at an additional cost
