T750 Yacht Design by Tboats

SONY DSC
MCSpin
OLYMPUS DIGITAL CAMERA
OLYMPUS DIGITAL CAMERA
OLYMPUS DIGITAL CAMERA
  • Download brochure
  • Pre-order terms & conditions

Dimensions :

LOA
7.65 m
Beam
2.9 m
Draft
2.1 m
Sailing weight
1190 kg
Crew weight
430 kg
Complete boat
760 kg
42.5 sqm
141.1 sqm
Date : Crew weight

Description :

Note that the T750 plan purchase and download contain the two versions, standard and canting keel



The T750 yacht design by Tboats is a fun project to build and sail and is available for client construction with kit options available.

Winner of many sport boat championships in new Zealand, Australia and Europe. There are a number world wide being built and purchased.

The rig features no permanent backstay with rig tension adjusted from an optional hydraulic ram under the mast. The mast is designed with the mainsail roach to bend in the puffs and allow the mainsail to exhaust.

YouTube player



Sailing :

A great Club Racer that puts you up against with the big boys, inviting many stories for the post match function.

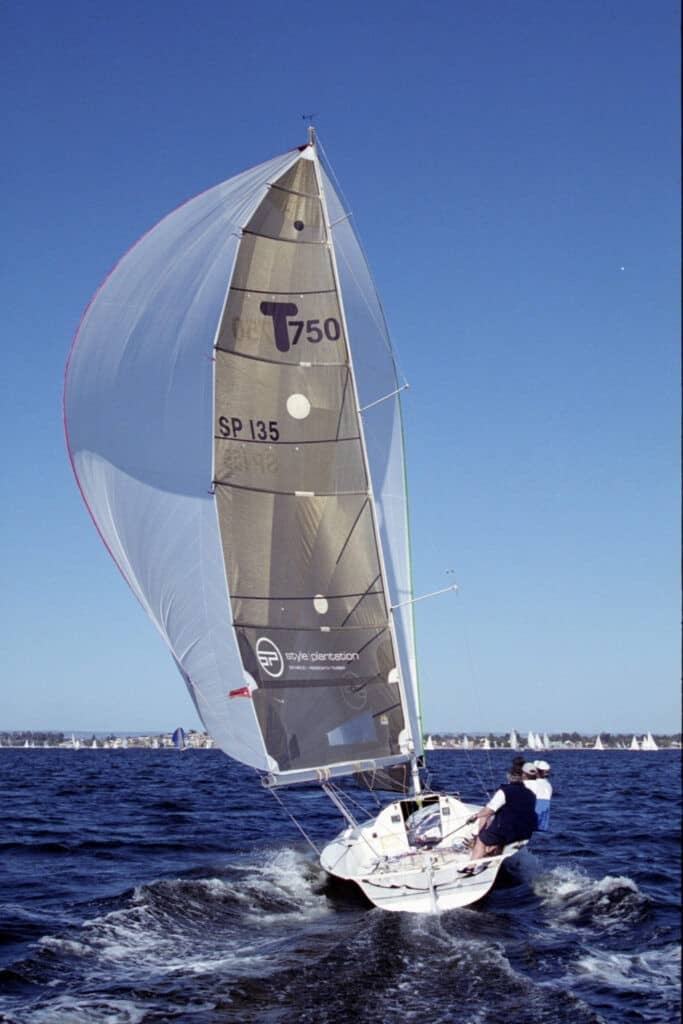

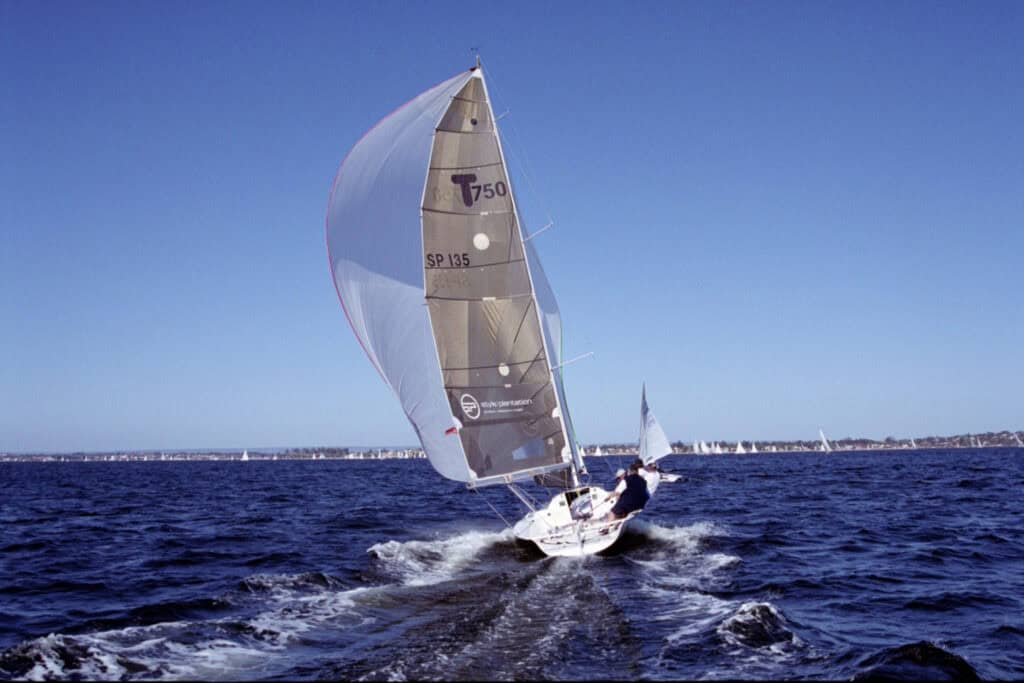

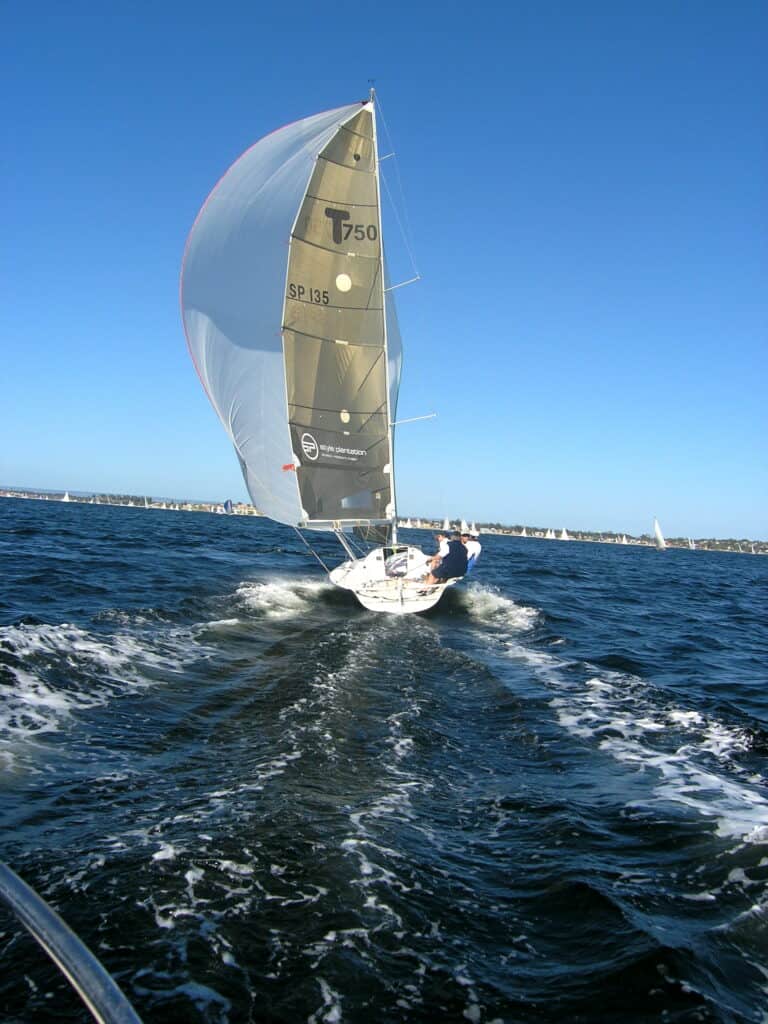

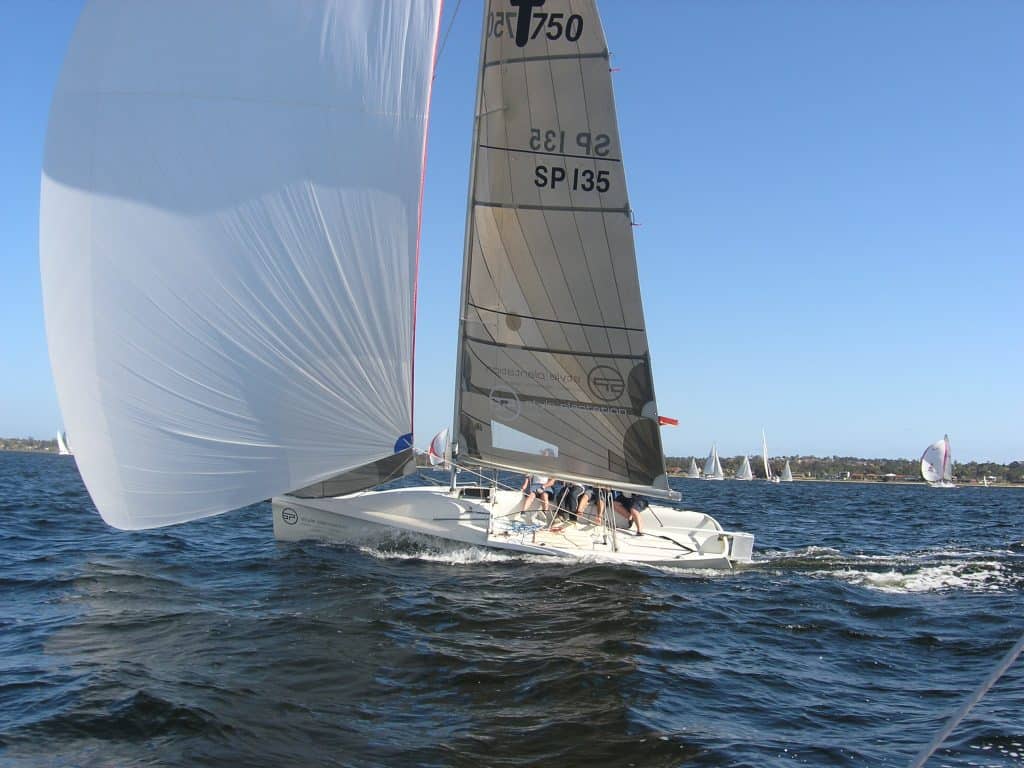

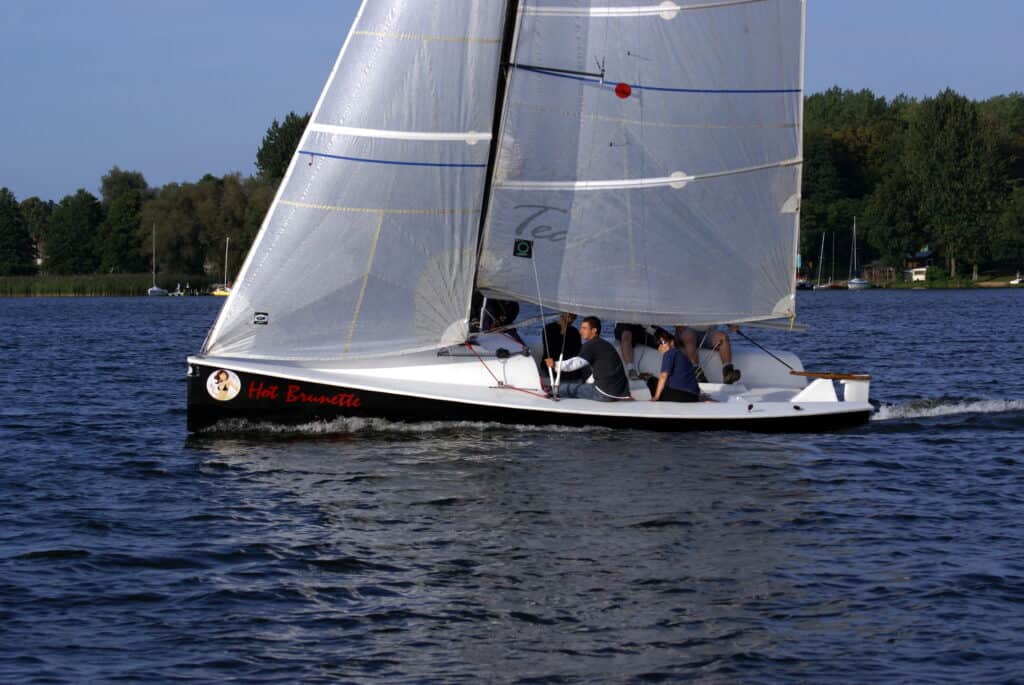

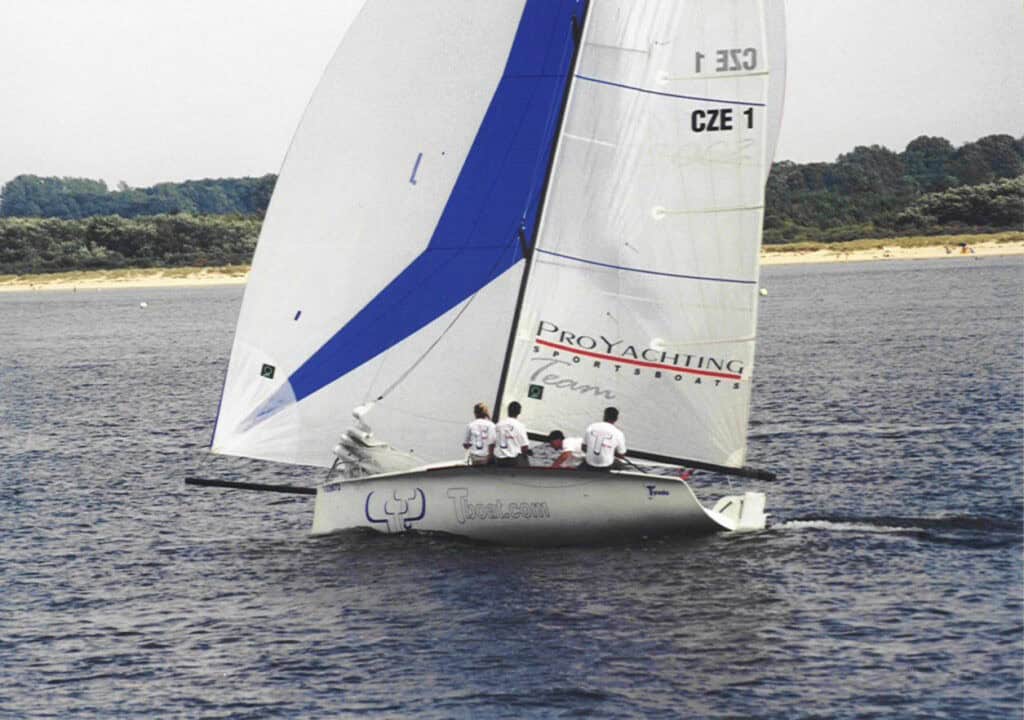

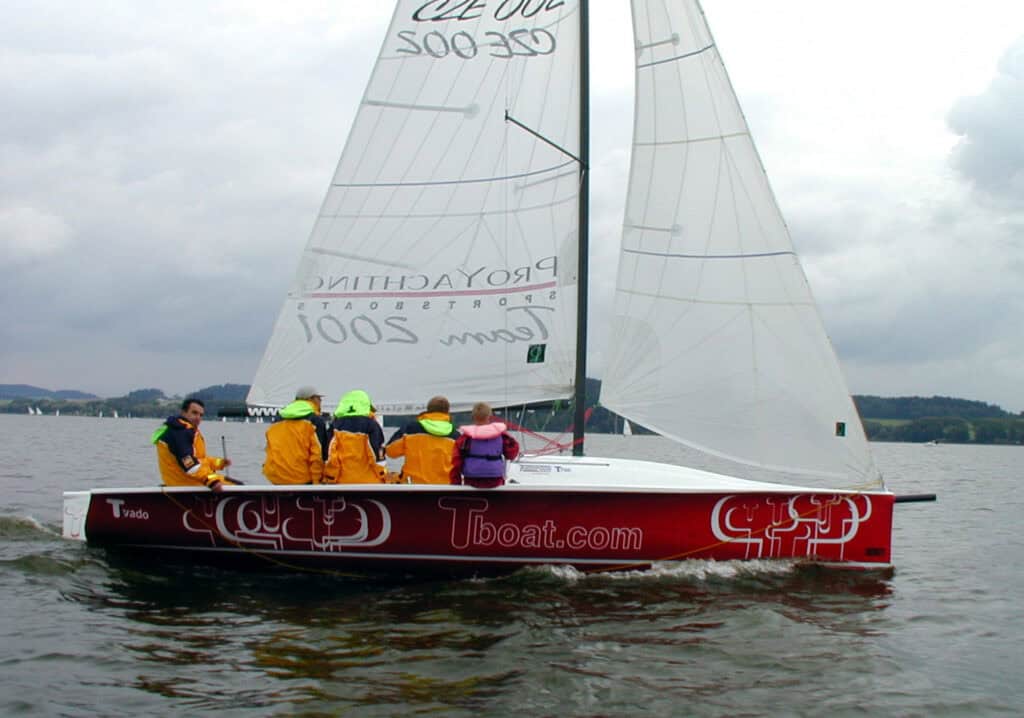

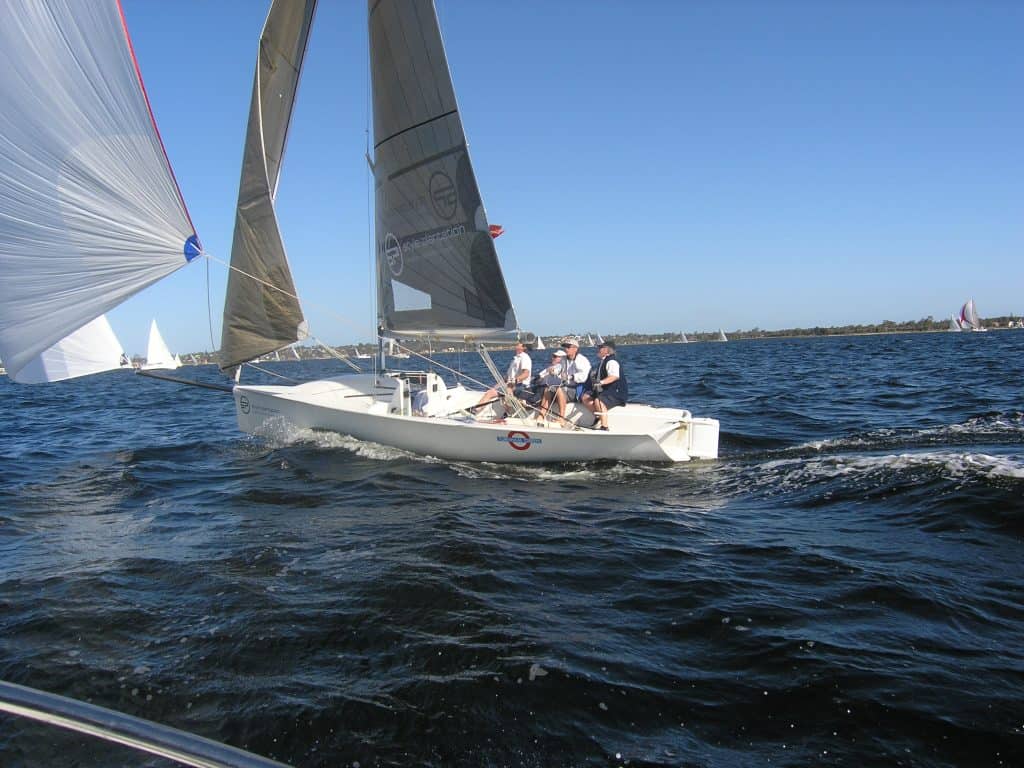

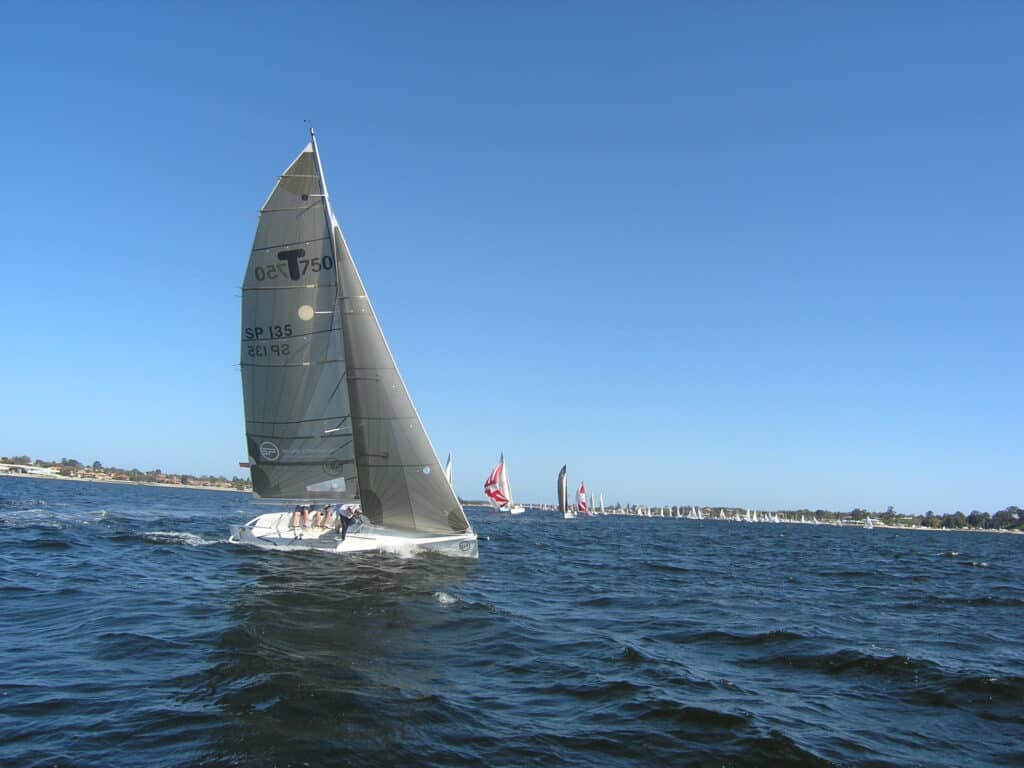

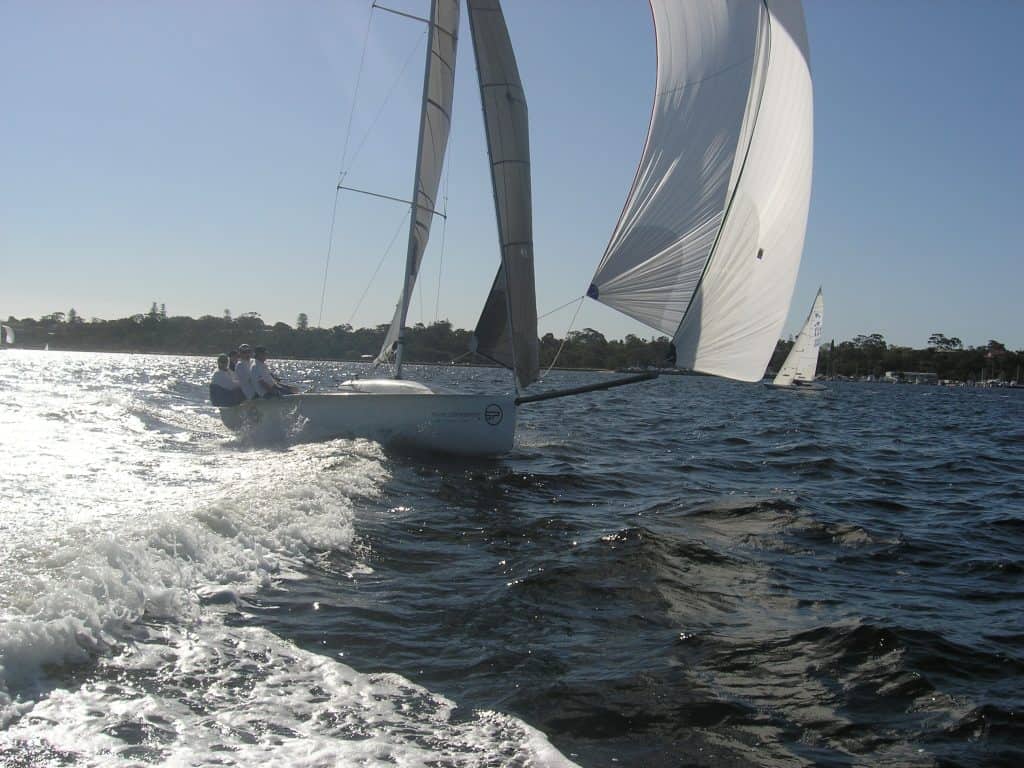

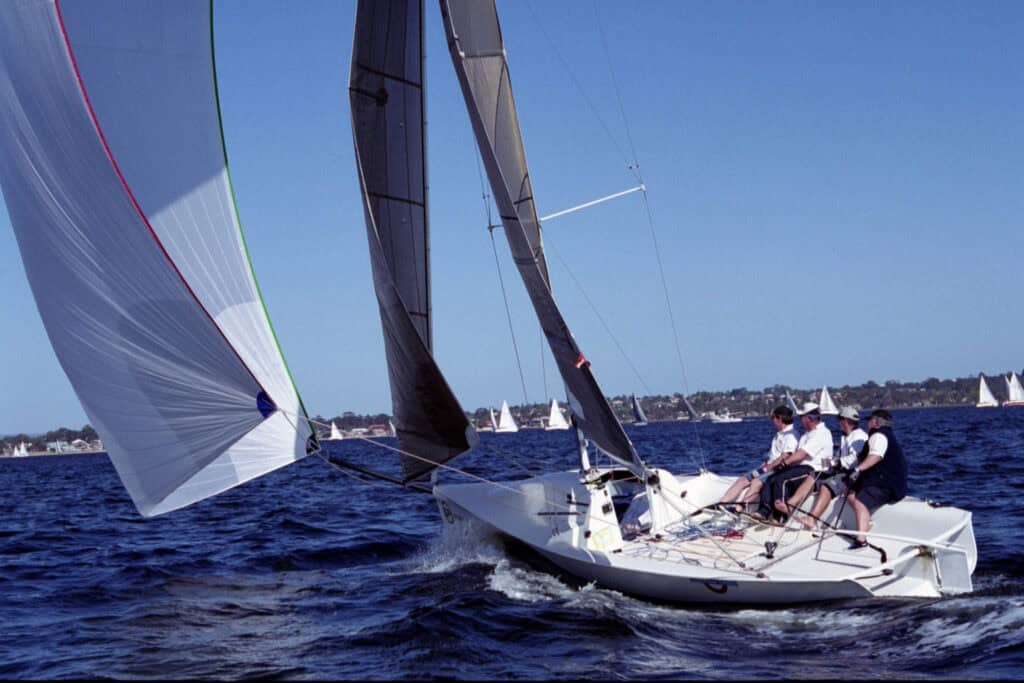

The T750 has powerful upwind and reaching performance and exhilarating downwind sailing. It is a very comfortable and forgiving boat to sail in all conditions.

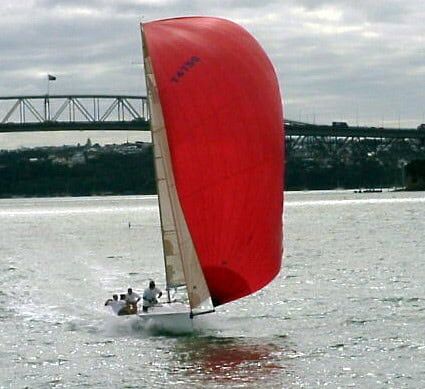

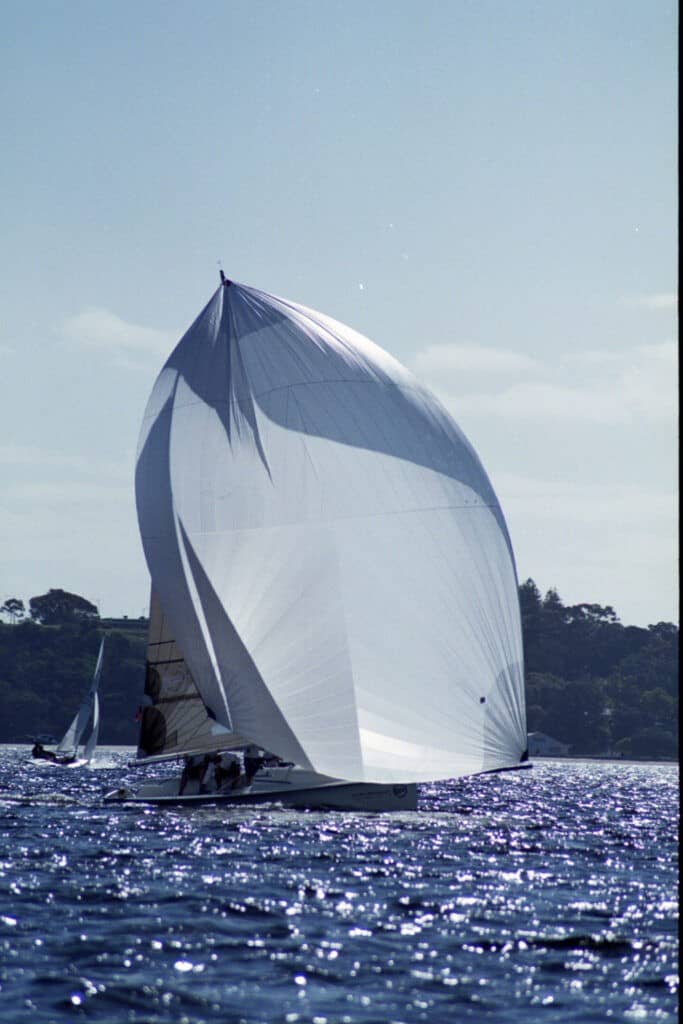

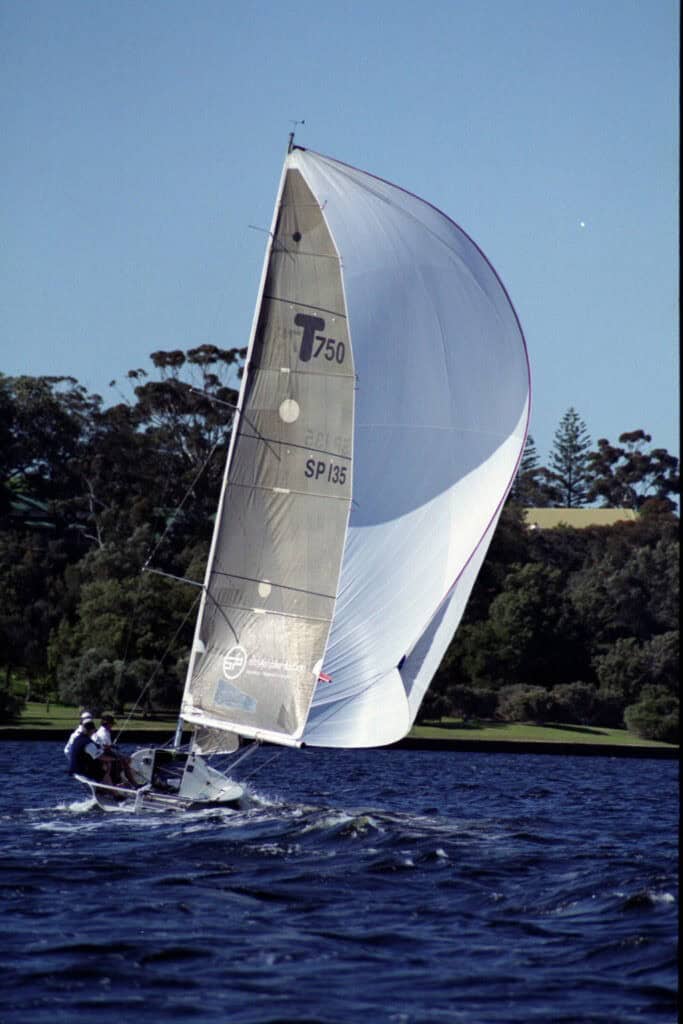

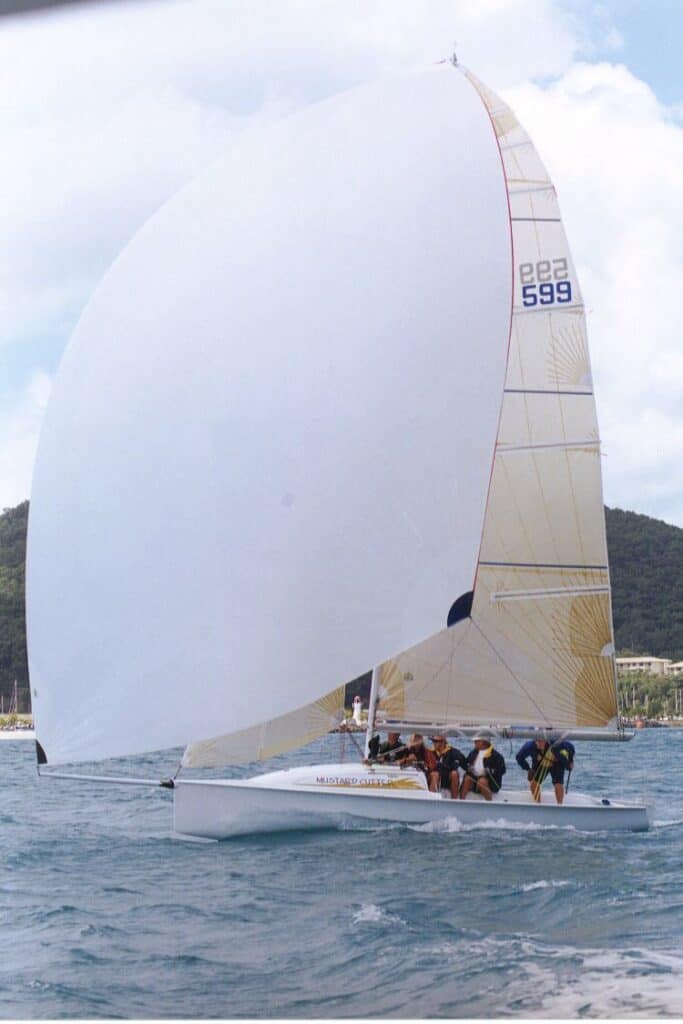

With the masthead or fractional spinnaker this is a no compromise racer – it can take you at a pace you’ve never been before.

Winner of many sport boat championships in new Zealand, Australia and Europe. There are a number world wide being built and purchased.

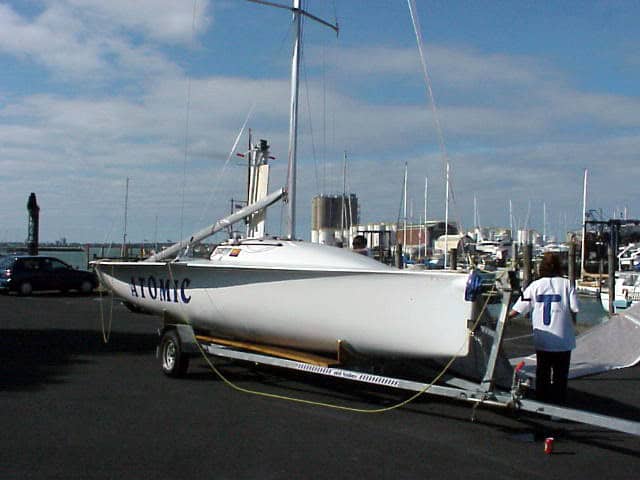

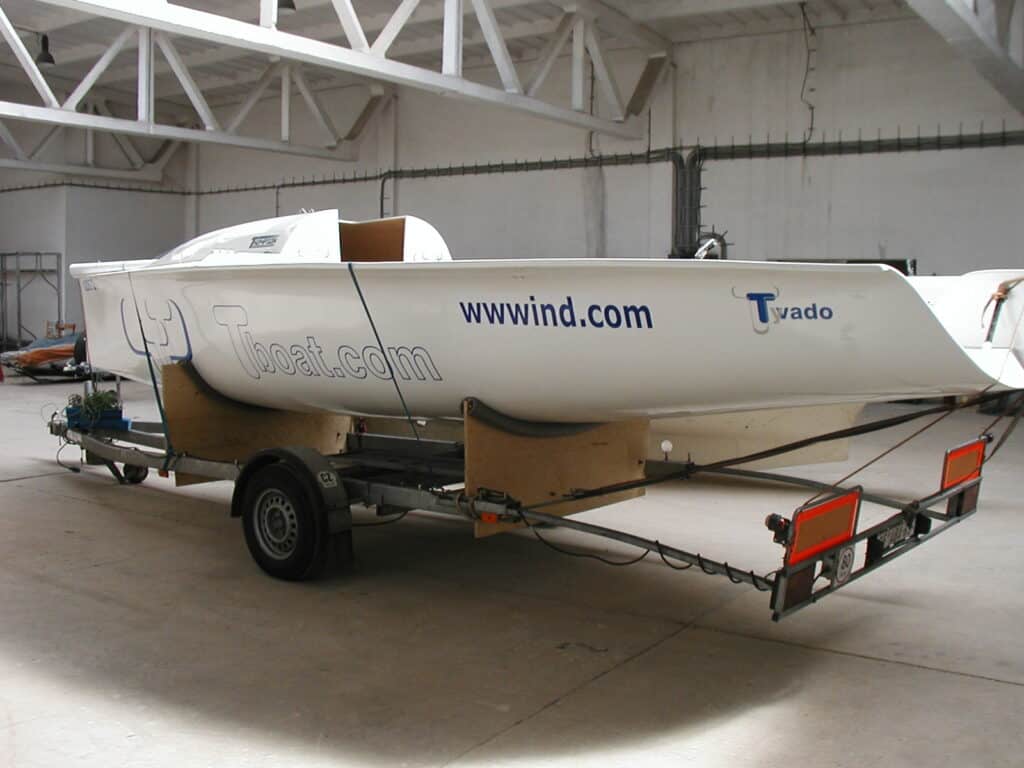

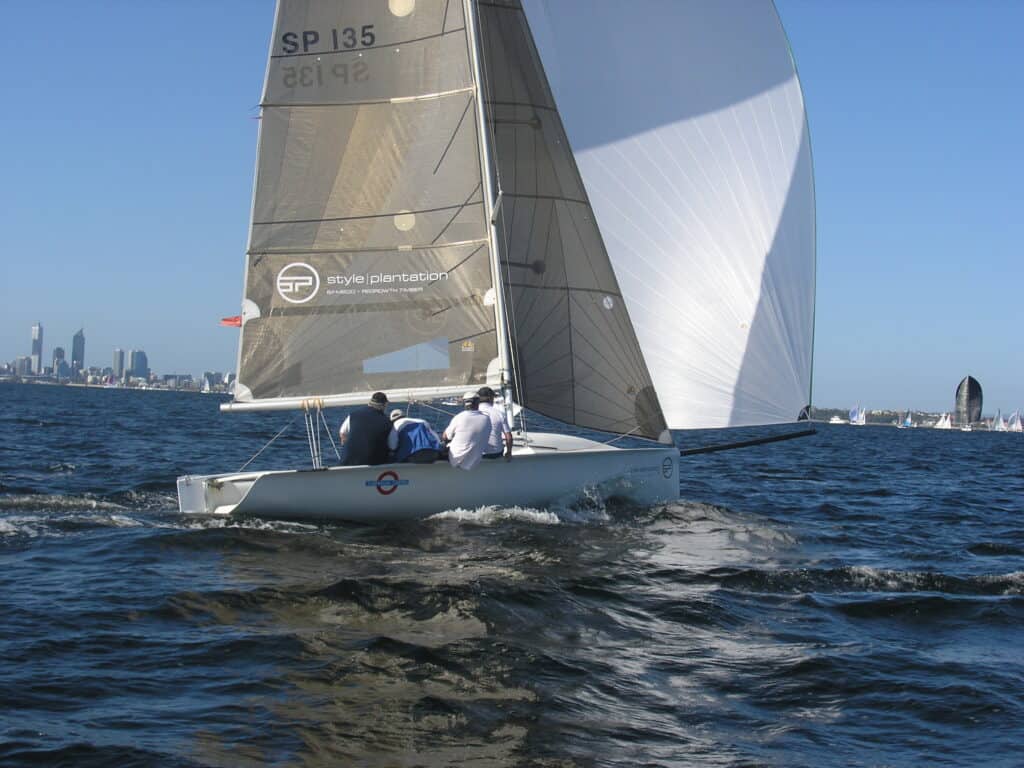

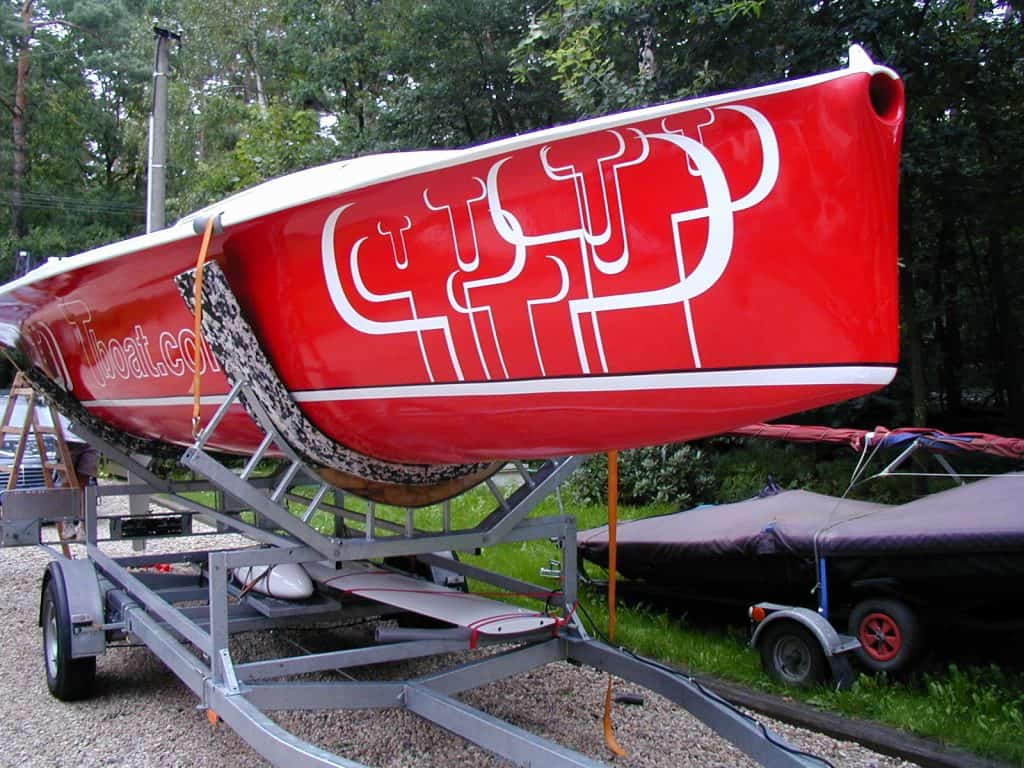

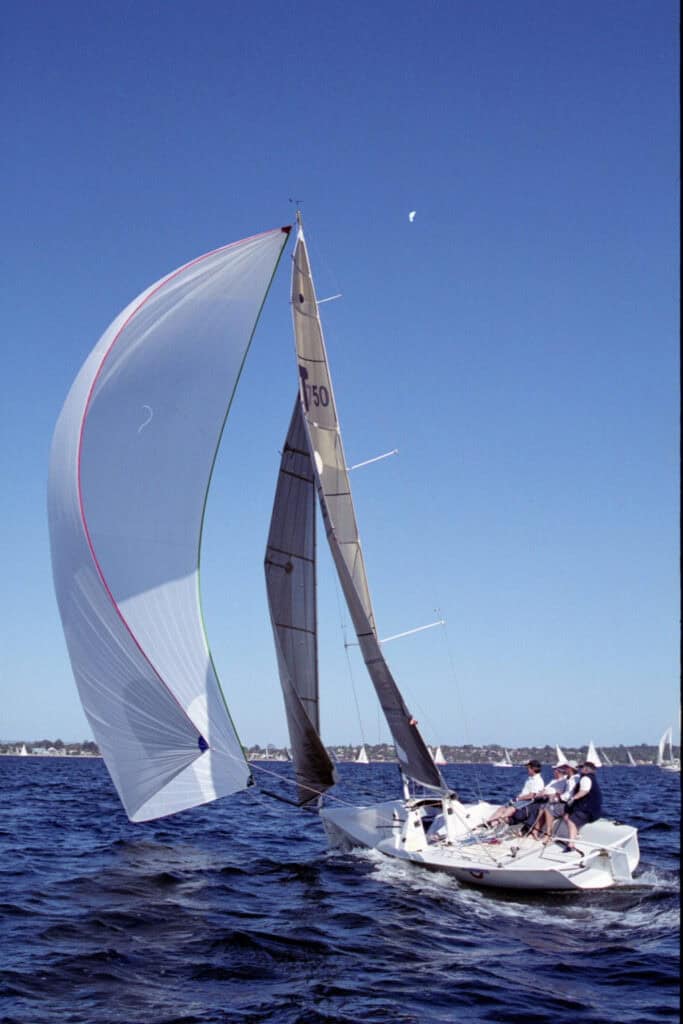

Demountable side decks reduces trailering width to 2.3m also enabling container shipping. The rotating prod assists in sailing low downwind angles with asymmetric spinnakers. The light weight of the yacht means towing is easy with a family car. Launching can be from ramp or crane using the keel mounted lift point

Purchase and Build Options :

Design
The T750 is designed as a one design with the added advantage of being a superb PHRF racer often beating the 40 footers around the course.
The designers have utilises the latest VPP software to help create a boat that is very fast and stable upwind yet exhilarating downwind.

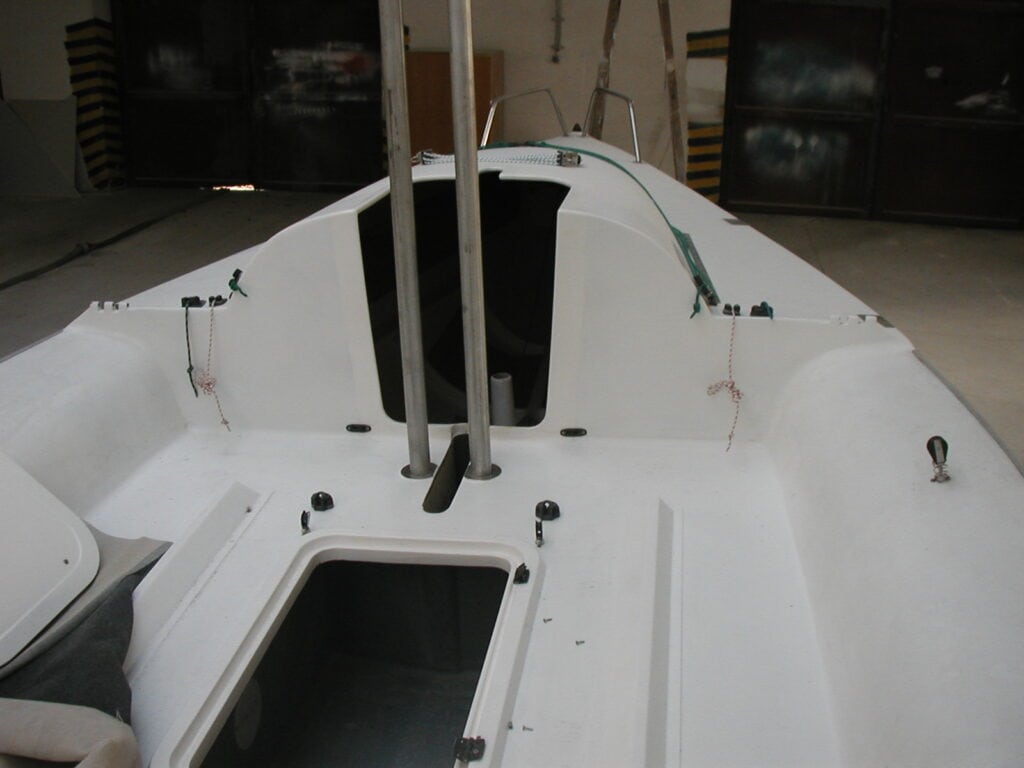

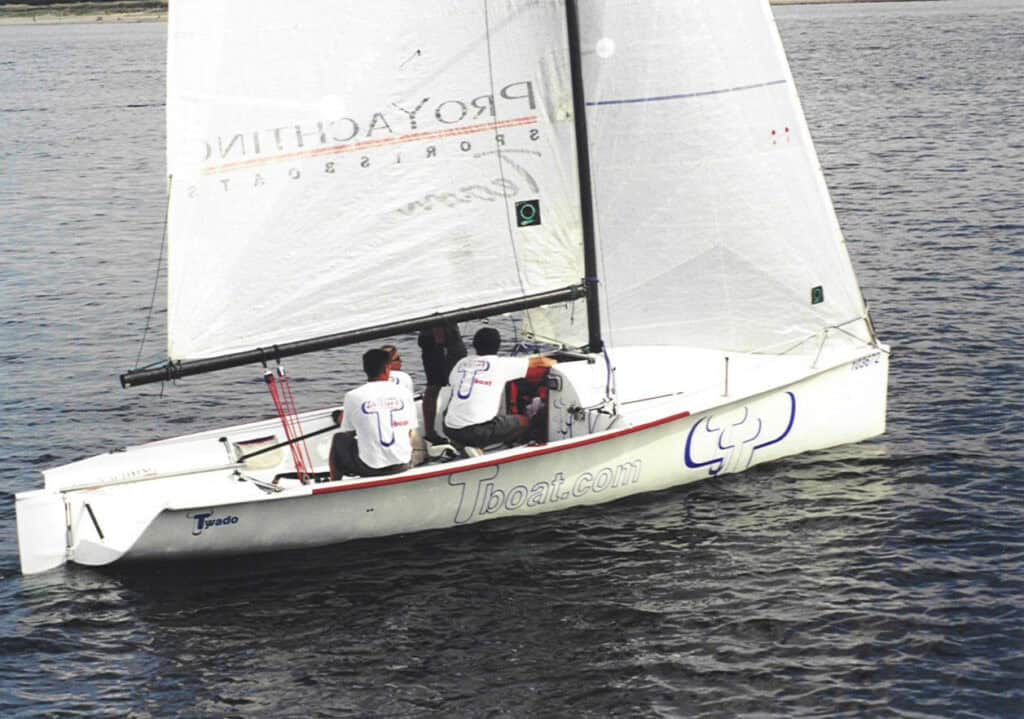

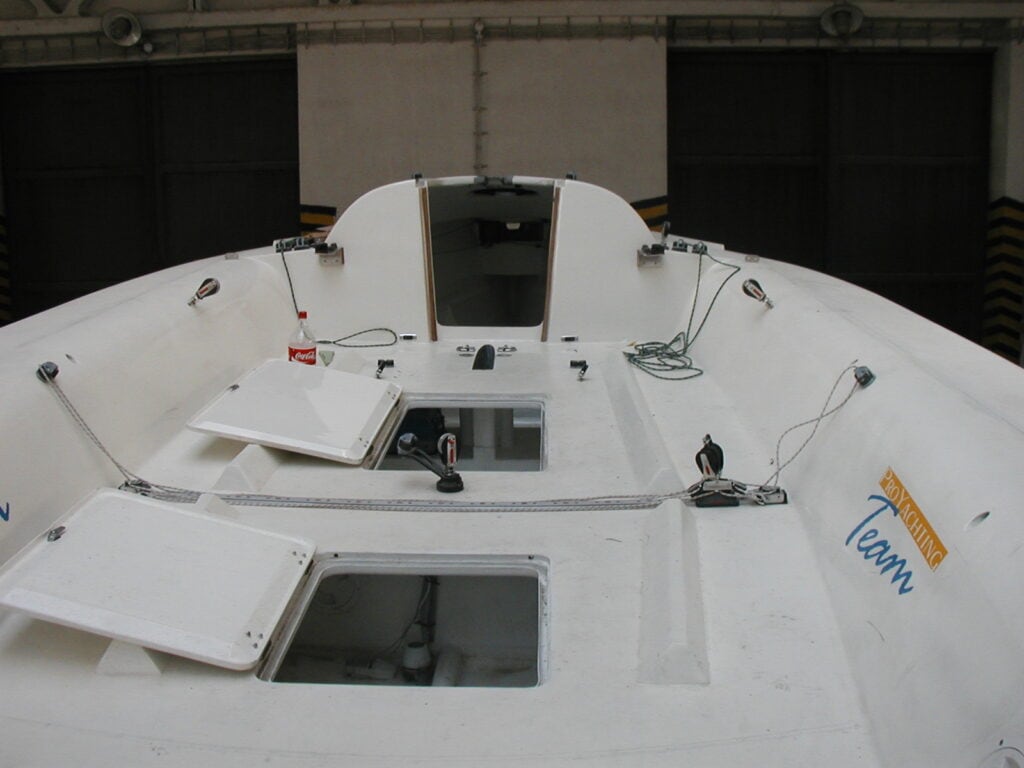

It features wide and comfortable side decks and a large cockpit, all of the sailing controls are simple and easy to use.
The rig features no permanent backstay with rig tension adjusted from an optional hydraulic ram under the mast. The mast is designed with the mainsail roach to bend in the puffs and allow the mainsail to exhaust.

Construction
The T750 is constructed using eglass and epoxy/vynalester resin with a foam core. Carbon fiber is used for additional stiffening where appropriate.
A cedar stripped plank building method is available but with our simple to build methods in foam it is not recommended.

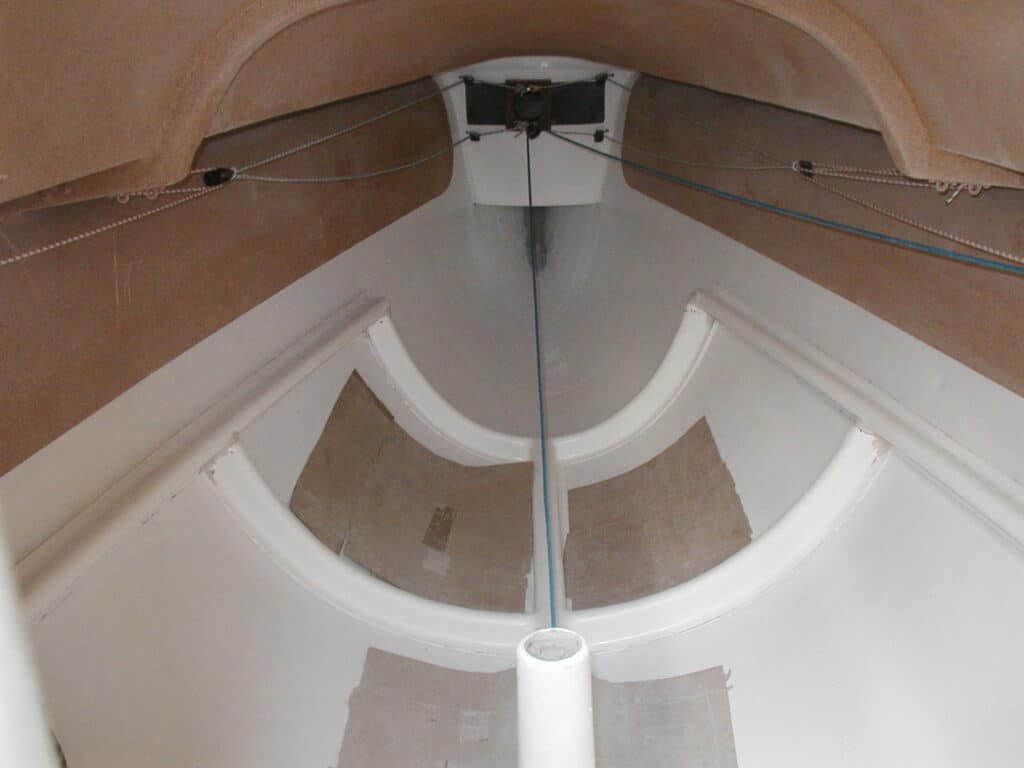

Plywood or foam internals are used with a simple grid system of foam ringframes.
The keel and rudder are constructed using carbon fiber stiffening.

Specification
Rig – The mast and boom are carbon fiber with an aluminium option for the budget conscious. Rigging is Dyform with aluminium spreaders.
The bow prod is articulating and carbon fiber.

Links to media and Video :

  • T750 Gallery
Close

Pre-order Terms and Conditions

A design pre-order allows you to secure your spot for a design while I work on updating the foils and hull patterns to the latest, most advanced shapes. This process ensures the final design meets the highest standards, but please note that there will be a waiting time as these updates are completed.

Conditions below:
1. On receipt of the 50% deposit Tboats will provide a link to a downloadable folder that contains files for the design selected, (includes pre-order 15% discount)
a. Design drawings in pdf format
b. Build process for this design
2. Tboats will provide the construction files as soon as they are finished, (usually within 10 days)
a. CNC 2D cut files for the build frames and foils
b. Build material list and parts list
c. Performance data
3. A link for the final payment, including the 15% discount, will be emailed when the final design files are completed. Once paid a link to a download folder will be provided.

Notes!
• With each design I allow 3 hrs of my time for customisation
• Advice via email is free throughout the build and commission process
• 3D CNC cut files are available for the foils at an additional cost
